TEW Electric Heating Equipment Co., Ltd.

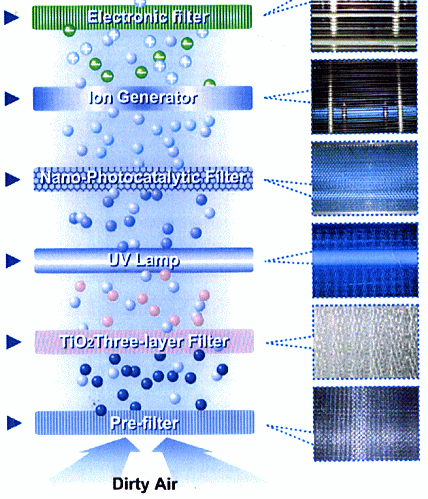

6 Cleaning Processes

Six cleaning processes assures that you are breathing the purest room air.


	8200V electronic filter absorbs the miniature dust and decomposed particles.
	Producing a forest like ion density. therefore rovides you the most healthy air.
	Nesting filter design increased the area of photocatalytic disenfection, enabling better performance in removing germs and eliminating stinking air.
	UV lamp effectively destroys the DNA and RNA of all sort of germs. It also activates the photocatalytic device.
	The TiO2 filter conducts the first disinfection process and slows down the air flow for better particle absorption
	Pre-filter provides the first cleaning process to remove larger particles, dust mites, hairs or fibers.

Application

Hospitals, Clinics, Kindergartens, Classrooms, Offices, Banks, Restaurants, Pet Shoops Families with asthma or allergic paient.
Specification
Model Number: GVA-800	Applicable Area: Max. 2100M²
Power Consumption: 185W at 110V single phase, 60Hz	Dimension: 980mm (Height) x 900mm (Width) x 250mm(Depth)
Air Flow: 800CFM (23.6CMM, 1416 CMH)	Weight: Approx. 50Kgs

6 Functions

.:Disinfection .:Odor Removal .:Eliminating Harmful Air	.:Destroying Dust Mites .:Dust Absorption .:Cleaning

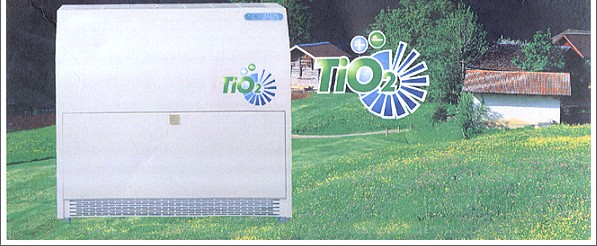

GBG photocatalytic air purifier - The only air purifier that integrates advanced nano-photocatalytic and washable electronic filter technologies.

TiO2 photocatalytic technology effectively decomposes germs and remove stinking air TiO2 is a material which, when activated by ultraviolet rays and absorbs sufficient energy, will generate numerous electrons and electronic holes to conduct a sequence of oxidization and reduction. Utilizing the high capability of TiO2 to induce chemical reaction, GBG photocatalytic air purifer is able to fully decompose germs, stinking odor and harmful particles in the air with an air-clean rate of 99.9%. Its high efficiency of air purification has been widely recognized by research institutes and hospitals globally.
High efficiency filter and washable electronic filter fully eliminate harmful particles and dust mites GBG photocatalytic air purifier is designed with six processes of purification. The first process applies highly effective filter to remove dust mites, dust, hairs and fibers. After sterizlization and refreshment by nano-photocatalytic filter, air is fed to an electronic filter collector to absorb miniature dust and decomposed particle.

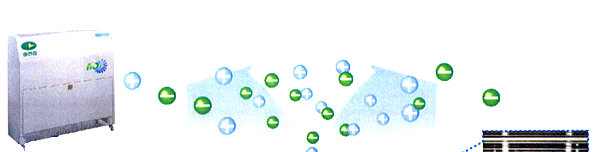

Providing highly purified room air that makes you feel you are breathing in a forest The negative ion that exists in the air vitalizes the immunity system and self-healing capability of human body. Therefore, it is usually referred to as "Natural Vitamin". However, recent researches indicate that, with the increase of ultraviolet rays and the aggravation of air pollution, the negative ion in the air has been decreasing over the years. Consequently human beings are losing their autonomous capability of health maintaining. GBG photocatalytic air purifier is designed with ion generator to neutralize the harmful particles in the air, maintaining the ion density to the similiar level of a natural forest. It makes you feel so much refreshed just like reathing in the wild nature.

Main Features

High airflow applicable to large space High airflow up to 800CFM is provided for application in a large space. Airflow is adjustable and the direction of outlet can be set forward, backward, left or right, allowing even dissipation of clear air.
Triple filtering to eliminate pollen and dust mites High efficiency pre-filter, full aluminum filter plus electronic filter collector effective remove pollen, dust or dust mites with a clean effect up to 99.999%.
Four layer sterizlization destroying all species of germs Two nono-photocatalytic filters, UV lamp and an 8200V electronic filter collector are able to destroy and decompose all sort of germs, reaching a disinfection effect of 99.997%.
Energy saving High power factor motor offers the advantages of less power consumption, longer product life and lower noise.
Automatic indicator for electronic filter cleaning When, after long use, the indicator will be automatically turned on, reminding you to clean the collector.
Remote control for convenient use For your convenience, this unit can be operated through the front panel or remote controller.

Performance Comparison
Types	Disinfection	Odor Elimination	Dust Removal	Safety	Organic Air Decomposition
Photocatalytic+Electronic Filter	◎	◎	◎	◎	◎
Photocatalytic	◎	◎		◎	◎
Electronic Filter	×	×	◎	◎	×
Filter	×	×	◎	◎	×
Negative Ion			×	*
Ozone			×	*

Keep away from the fatal threat of SARS and flu.
